The tabular output file contains a summary of the main analysis results in both plain text and CSV (Comma Separated Values) file versions.

Project Information

The top section of the tabular output file contains general information about the PipeLay project, as specified in the Project component, as well as more specific information about the analysis itself, including the analysis title, taken from the Analysis component name, and the date and time of the analysis run. The figure below shows an example of the Project Information section of a tabular output file.

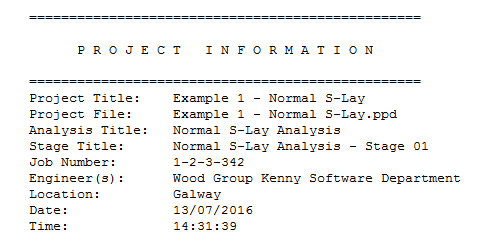

Project Information in Tabular Output File

Project Information in Tabular Output File



In the case of static analyses, the next section of the tabular output file is the Static Solution Summary section and it is divided into two separate articles; Static Solution Summary (Part 1) & Static Solution  Summary (Part 2). The remainder of the tabular output is described in the Tabular Output - Main Output article.
