Animation File

Previous page Next page

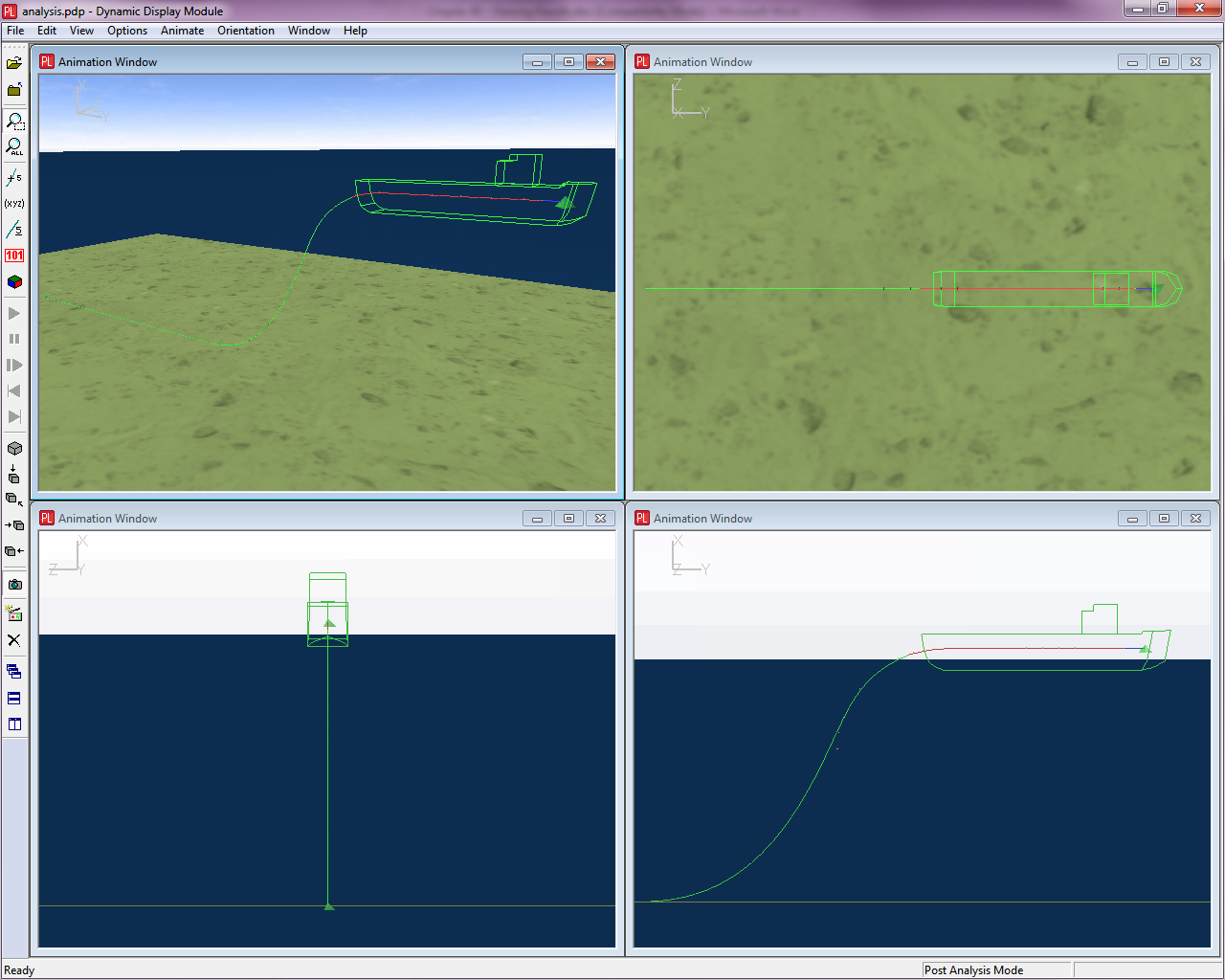

The animation file (analysis.pdp) generated by PipeLay affords a visual inspection of the model at a particular stage. In this instance, a static structural configuration is displayed in the animation file for each stage, and the Play command is disabled. You can rotate the view, zoom in on sections, display node and element numbering, and so on. A sample static configuration, roughly midway through the abandonment process, is shown in the figure below. Please refer to 'Dynamic Display Module' for a detailed discussion of the module.

Back to Overview

Sample Animation

Sample Animation
