Once the analysis has been successfully run, various reports and results may be viewed by going to the Results tab of the Analysis component and selecting the relevant buttons.
Representative results for this analysis are presented in the two figures below. The bending stress distribution is shown in the first figure, and the maximum Von Mises stress distribution is shown in the second figure. The parameters are plotted against the distance along the pipeline from the fixed connection point at the seabed, ’Free End’.

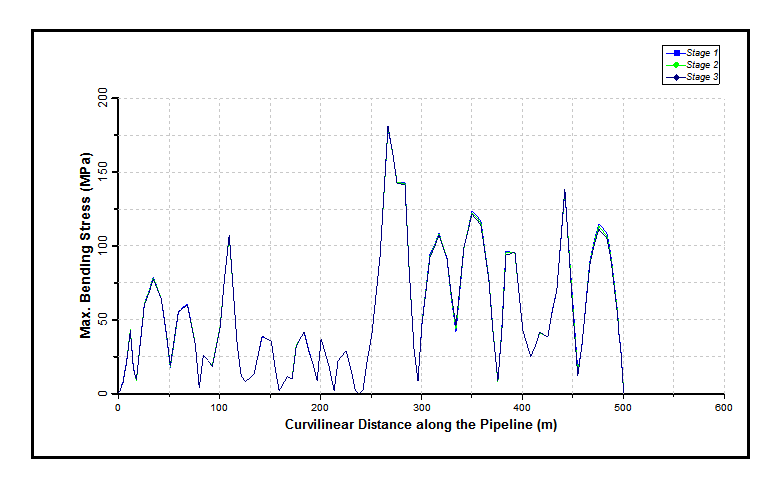

Maximum Bending Stress Distribution

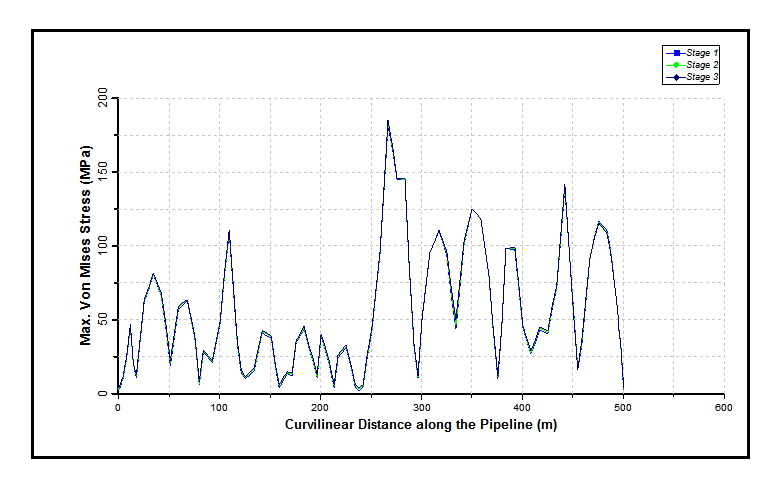

Maximum Von Mises Stress Distribution
