Vessel Offset Data Inputs

Previous page Next page

vessel_offset

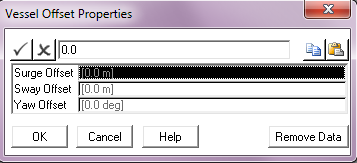

Vessel Offset Properties Dialog

vessel_offset_properties

Input

Description

Surge Offset:

The offset of the vessel from its initial position in the local surge direction.

Units: [m] or [ft]

Sway Offset:

The offset of the vessel from its initial position in the local sway direction.

Units: [m] or [ft]

Yaw Offset:

The offset of the vessel from its initial position in the local yaw direction.

Units: [degrees]
