Sentinel Hasp Admin Control Center

<< Click to Display Table of Contents >>

Navigation:  PipeLay > Network Licencing >

Sentinel Hasp Admin Control Center

Previous page Next page

The Sentinel HASP Admin Control Center enables a system administrator to monitor the following:

1.All the HASP dongles which are currently available on the network, including their identity, type, and location.

2.The number of users currently logged in to a HASP dongle, and the maximum number of users allowed to be simultaneously logged into that specific dongle.

3.The Feature ID (e.g. PipeLay = 30) to which each HASP dongle allows access, and any restrictions that apply to the Feature.

4.The users who are currently logged into a specific HASP dongle, including detailed login information, e.g. Login Time, User, Machine Name etc.

The Admin Control Center (ACC) is installed as part of the Sentinel HASP run-time environment driver installation process and can be launched by typing http://<machine_name or ip_address>:1947 in the address field of a browser (if the license server has been configured to allow Remote Access). If you are accessing the ACC on the server itself then use http://localhost:1947.

When you launch the ACC, the web interface displays a number of Administration Options on the left of the page. The context-sensitive Help document, which forms part of ACC, provides in-depth information on each of these options. Nonetheless some summary points are provided below.

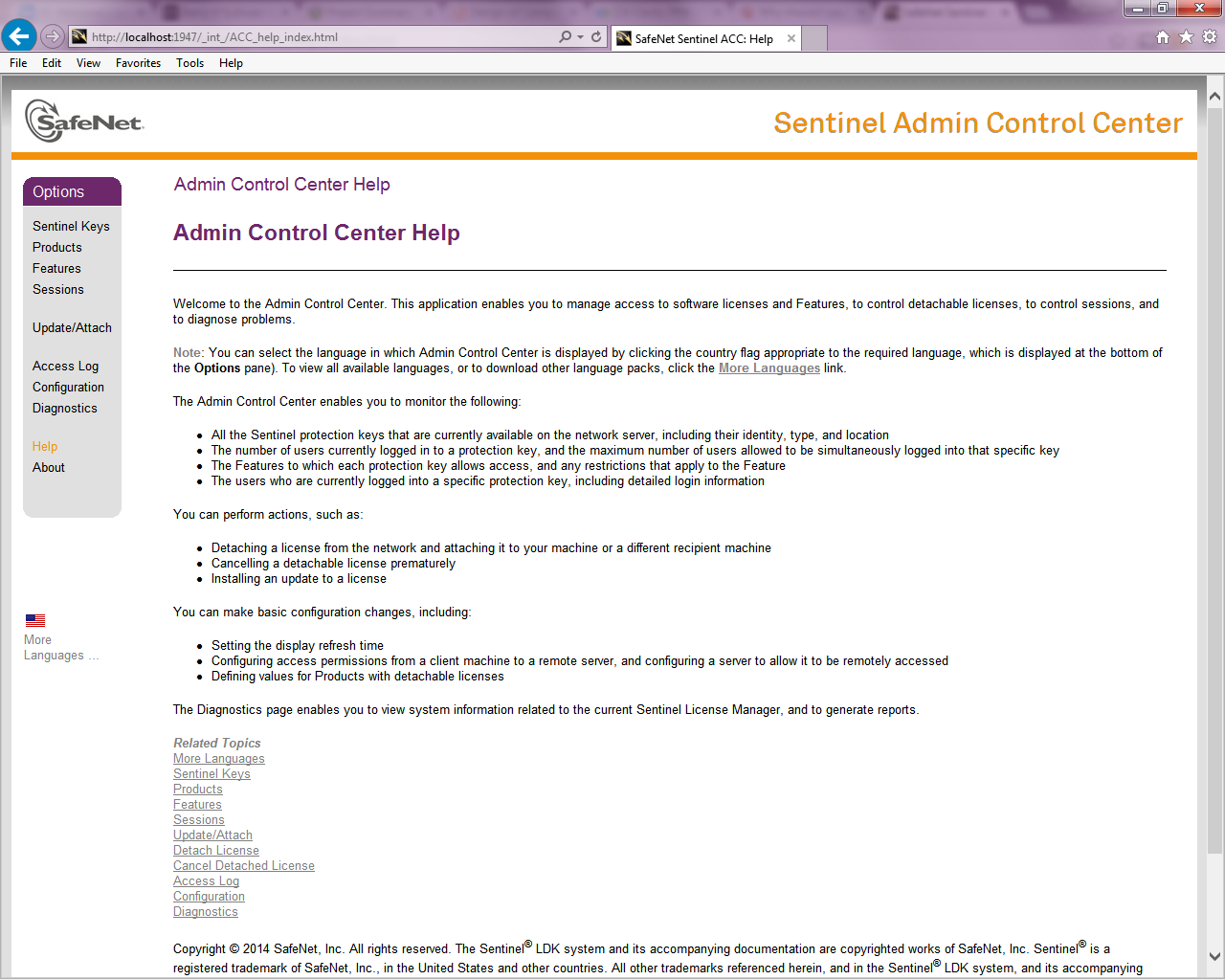

Main Page of Admin Control Center

Main Page of Admin Control Center



The following Administration Options are available on the ACC:

HASP Keys enables you to identify which HASP dongles are currently present on the network, including locally connected dongles.

Products enables you to view a list of the different Products available on all HASP dongles (both local and network).

Features allow you to view a list of the Features that are licensed on each of the HASP dongles that are currently present on the network, including locally connected dongles. In addition, you can see the conditions of the license, and the current activity related to each Feature.

Sessions lists all the client sessions on the local machine, and any sessions remotely logged in to the HASP dongle on the local machine. You can view session data and terminate sessions.

Update/Attach enables you to update existing licenses on a HASP dongle (using a v2c file).

Access Log enables you to view a history of log entries for the server on which HASP dongle is running.

Configuration allows you to specify certain operating settings for the Sentinel HASP ACC running on the connected machine. You can set parameters relating to user access, access to remote HASP dongles, and access from remote clients. In addition, you can customize log template files in terms of the data they return.

Diagnostics enables you to view operating information for the HASP dongle to which you are currently logged in, to assist in diagnosing problems. You can generate reports in HTML format. This option also enables you to view miscellaneous data relating to the use of the server on which HASP dongle is running.

Help displays the Help documentation for the Sentinel HASP ACC. Context-sensitive Help is available within each of the functions described above, by clicking the Help link at the bottom of the page.

About provides information about the version of ACC.

Country Flags enables you to change the language of the user interface by clicking on the flag of the country appropriate to the language you require. Languages other than English can be downloaded from the Sentinel Web site.



How to allow any computer on the local network access the ACC:

In the ACC, select Configuration from the left-side menu. This will open the configuration page. On the Basic Settings page select the Allow Remote Access to ACC check box. This will make the settings available for remote configuration. If needed, you may protect access to the ACC pages with a password. To set the password, use the Password Protection setting (it is at the bottom of the page).

Click Submit to apply the changes.

Users on the network can now open the ACC from their computer by launching their web browser and open the following URL: http://<machine_name or ip_address>:1947



To view users connected to the HASP dongle:

In the ACC, click Sessions in the left-side menu. This will open the page that displays information on connected users.

You can see the user names in the User column. If the connection list contains several pages, you will need to browse through the list by clicking « prev page and next page » buttons below the list.

The list is grouped by user names. Once you find the first entry of the user name in the list, you can check the next rows to see the licenses “taken” by the user.

You may configure the HASP dongle to prevent certain users or computers to connect to it.



How to disconnect users from the HASP Dongle:

In the ACC, click Sessions in the left-side menu. This will open the page that displays information on connected users. You can see the user name in the User column and the feature name and ID in the Feature ID column.

Find the desired user in the list. The list is grouped by user names. Once you find the first entry of the user name in the list, you can check the next rows to see the licenses “taken” by the user.

For each license occupied by the user, click Disconnect in the Actions column (this column is rightmost in the list).
