Results - Random Sea Analysis

Previous page Next page

The random sea analysis in this example corresponds to stage number 3. Results for this analysis are presented in the three figures below. Each plot represents an envelope of a particular parameter plotted against the curvilinear distance along the pipeline from the vessel connection point ‘_TensionerVCP(1)’. The comments made above in relation to the regular wave analysis are also valid here.

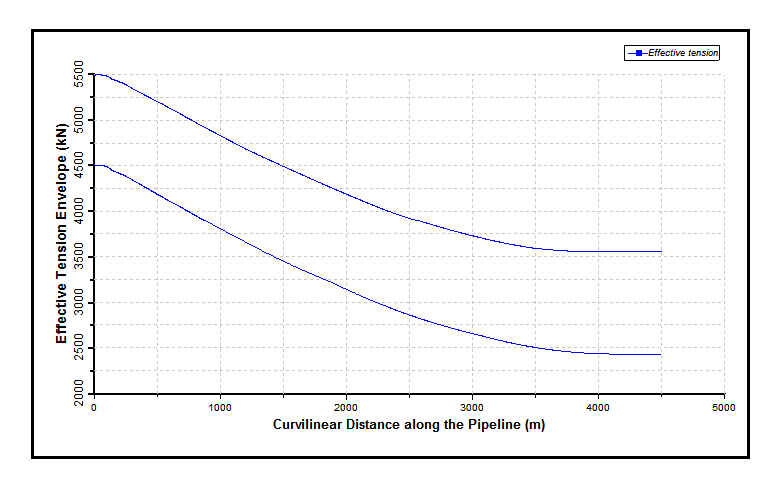

Effective Tension Envelope

Effective Tension Envelope

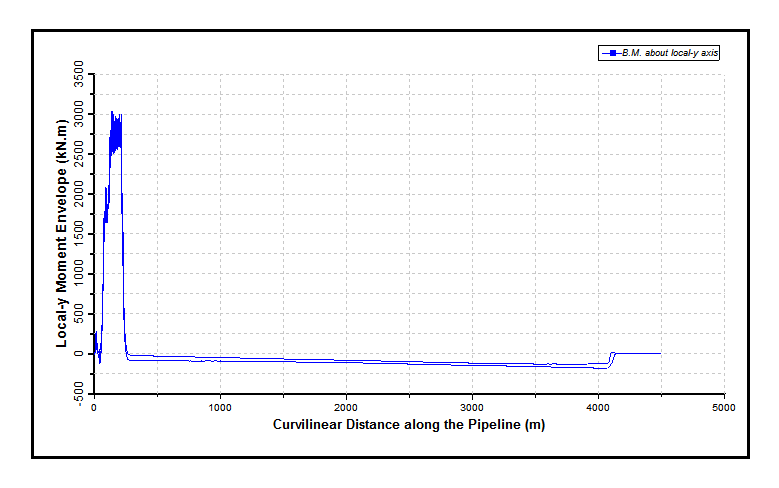

Bending Moment Envelope

Bending Moment Envelope

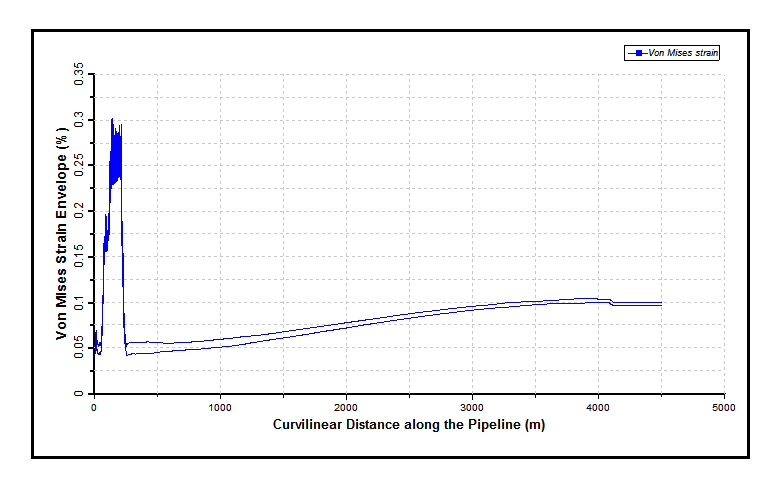

Maximum Von Mises Strain Envelope

Maximum Von Mises Strain Envelope
