Introduction

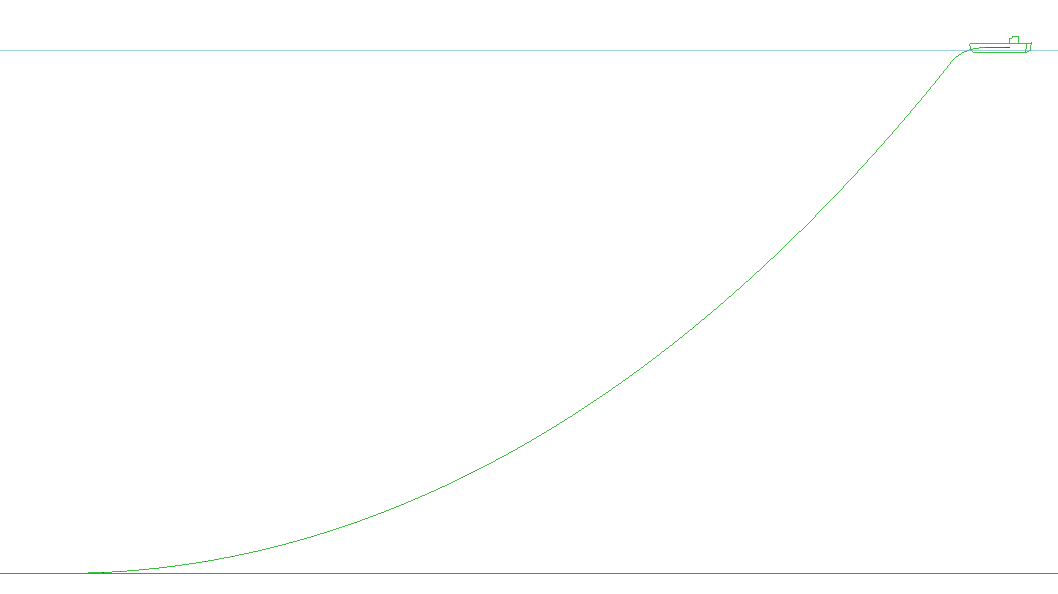

Example 1 simulates a normal S-Lay installation scenario in deep water. The S-Lay model includes a lay vessel equipped with an S-Lay stinger, which is fitted with V-shaped rollerboxes. A pipeline runs along a set of vessel supports before passing over the stinger and down onto the seabed. The pipeline is restrained on the vessel deck by a tensioner. The example includes a static analysis and two dynamic analyses, one with a regular wave loading and the other with a random sea loading. A top tension of 5000 kN is specified as the installation criteria for the static configuration. The figure below illustrates the static configuration.

Static Configuration

Static Configuration



Back to Overview

Example Files

The input files for this example may be found in the directory ‘Example 01 – Normal S-Lay’, which is located in the Examples subdirectory of your PipeLay installation directory. The input files are as follows:

Example 1 – Normal S-Lay.ppd

PipeLay project file

Lay Vessel.rao

Vessel RAO file
